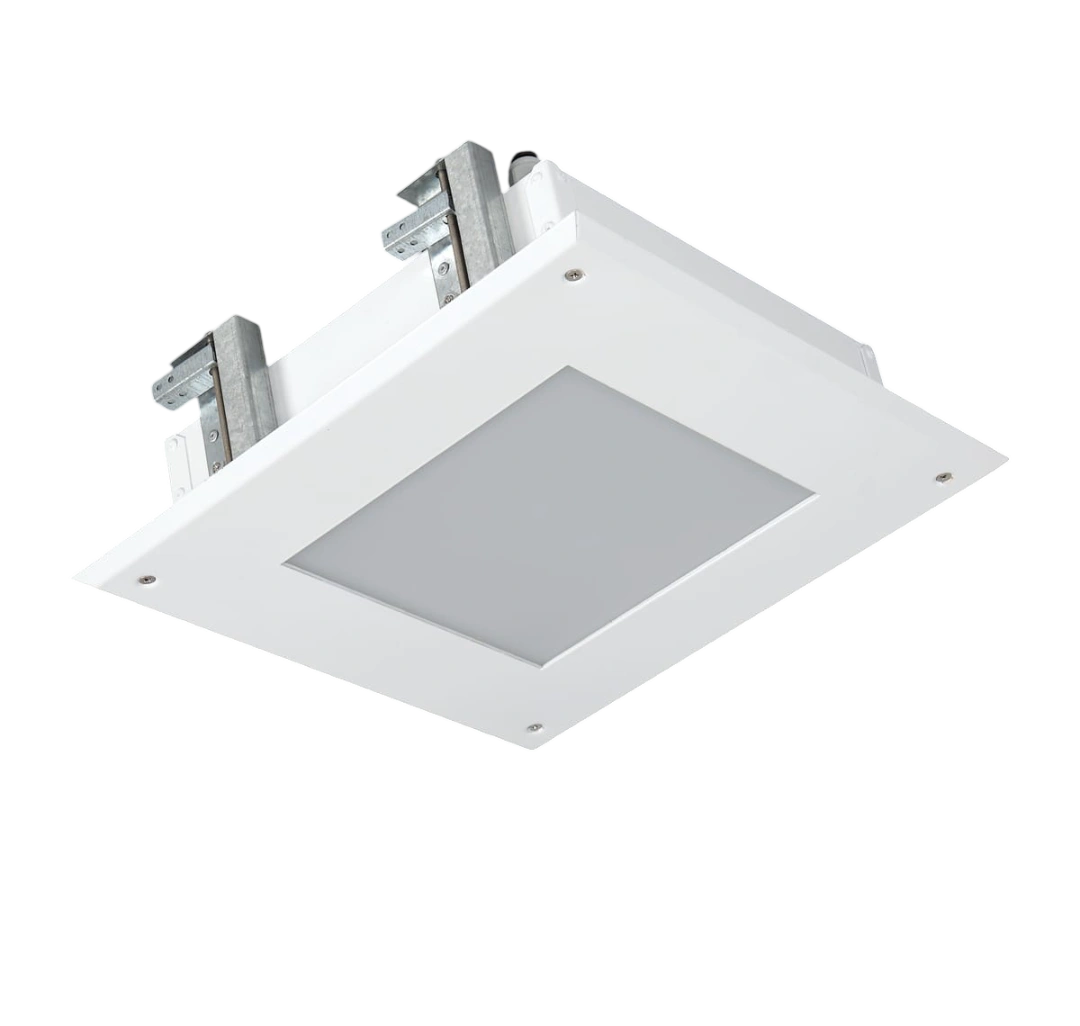

Bottom Opening Cleanroom Panel Light

3500.00

The LED Bottom Opening Clean Room Panel Light is specifically engineered to meet the stringent requirements of cleanroom environments such as pharmaceutical facilities, laboratories, food processing units, and electronics manufacturing. With a bottom-accessible design, it combines hygiene, efficiency, and ease of maintenance in one compact, high-performance lighting solution. Ideal for cleanroom ceilings where top access is restricted or not permitted. Perfect for cleanrooms in pharmaceuticals, biotech labs, hospitals, semiconductor manufacturing, food and beverage production, and operating theatres.

Watt

Color

Get a quote

Specifications

Environmental
Working Temperature	-10 °C to + 55 °C
Working Humidity	10 to 90% RH
IP Rating	IP54
Standards Compliance
Standards	Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 4kV (EN 61547)
Physical Details
Material	CRCA sheet steel white powder-coated Opal acrylic cover is sealed with white powder coated or high strength corrosion resistant stainless-steel frame double-sided gasket to foolproof dust.The Bottom frame is gasketed from the sides for ceiling the cutout. Gasket is made of cross-linked non-hygroscopic polypropylene. Loss-proof SS screws used for fixing the bottom frame to the housing
Suitable Fixing	Modular, Exposed T or non-modular ceiling systems.\ Luminaire mounted to ceiling RCC slab by chain suspension
Housing Color	Powder Coated - WHITE Stainless-steel frame/ white powder coated frame
Applications	Indoor
Application Area	Pharmaceuticals, Electronic Component Manufacturer, Food & beverage IndustryLaboratories, etc.
Warranty	2 Years

Product Details
Model	Bottom opening Cleanroom Panel Light
Make	SHINE PLUS
Electrical Data
Power Consumption	20W/ 24W/ 36W/40W/ 48W/ 60W/80W
Operating Voltage Range	90VAC-265VAC
Frequency	50 Hz
THD	<15%
Power Factor	> 0.96
Driver	Fulham Constant Current (Internal)
Efficiency	> 85%
Light Data
Light source (LED)	Bridgelux – LM80-08
Efficacy	110 lm/Watt
Colour temperature	6000K
CRI	>80
Average Life	L70 @50,000 Hours
