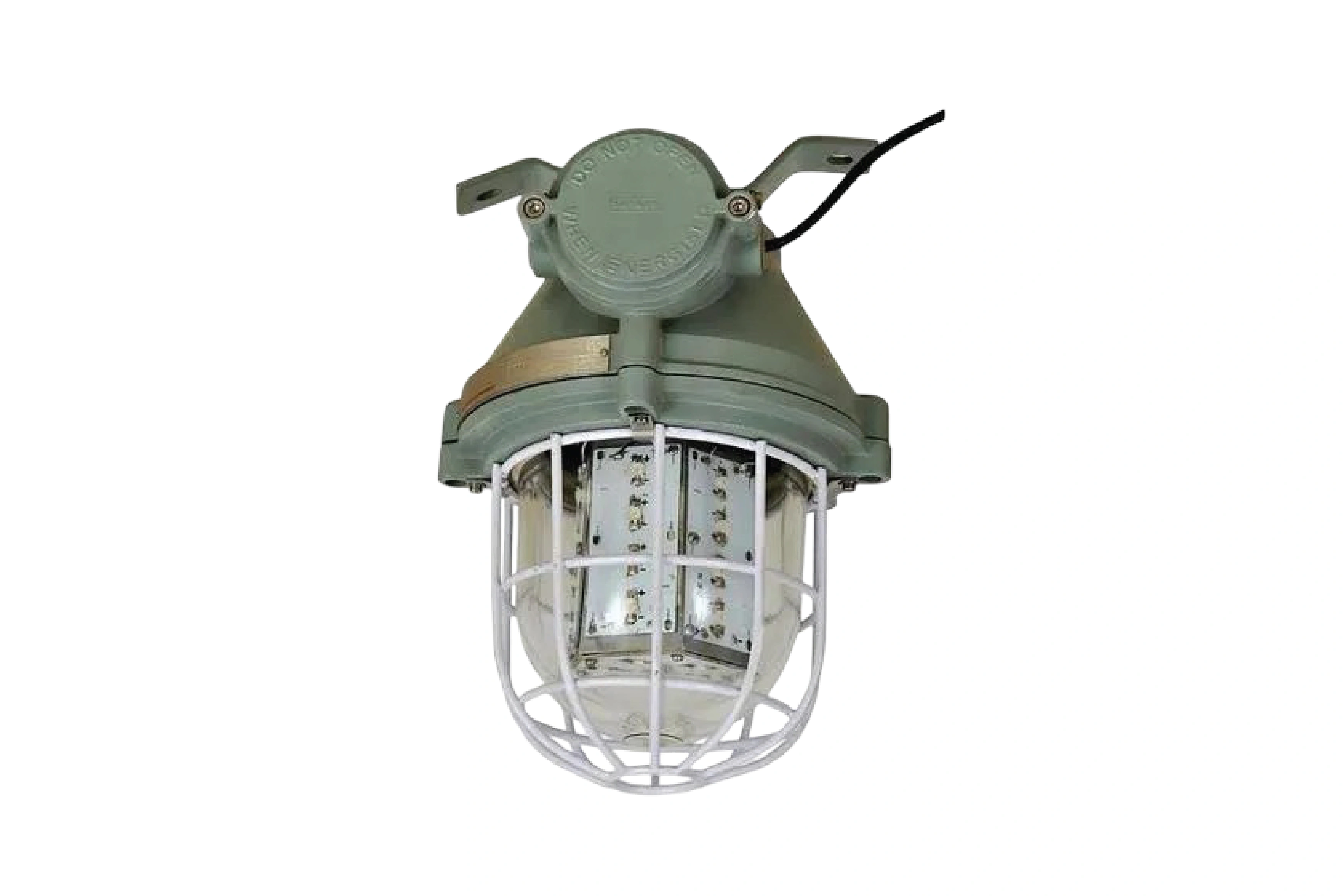

Well Glass (Traditional) (20W 30W 45W)

Prices As On Request

The LED Flameproof Well Glass Light (Traditional Design) is a rugged, industrial-grade lighting solution engineered for hazardous locations where flammable gases, vapors, or dust may be present. Retaining the classic form factor of conventional well glass fittings, this modern LED version combines safety, durability, and energy efficiency . Certified for use in hazardous areas Zone 2 for gas. Housing made from corrosion-resistant cast aluminum alloy with epoxy/polyester powder coating and toughened or borosilicate glass well for maximum impact and thermal resistance.

Watt

Color

Get a quote

Specifications

Environmental
Working Temperature	-10 °C to + 45 °C
IP Rating	IP66
IK Rating	IK07
Standards Compliance
Standards	Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC:(EN 61547)
Physical Details
Material	High thermal conductivity Excellent heat transfer
Housing Color	Powder Coated –DA Grey Glossy (RAL-7021)
Applications	Indoor
Application Area	Chemical, paint, fertilizer industries, Oil & gas,refinery, petrochemicals LPG bottling, pharmaceutical , Steel, Cement industries,Mines Refineries & Petrochemicals.
Warranty	2 Years

Product Details
Model	Well Glass (Traditional) (20W 30W 45W)
Make	SHINE PLUS
Electrical Data
Power Consumption	20W / 30W / 45W / 60W
Operating Voltage Range	90-305V
Frequency	50 Hz
THD	<10%
Power Factor	> 0.95
Light Data
Light source (LED)	Ex d IIC T6
Colour temperature	6500K / 5000K / 3000K
CRI	>70
Average Life	L70 @50,000 Hours
Installation	Easy installation
