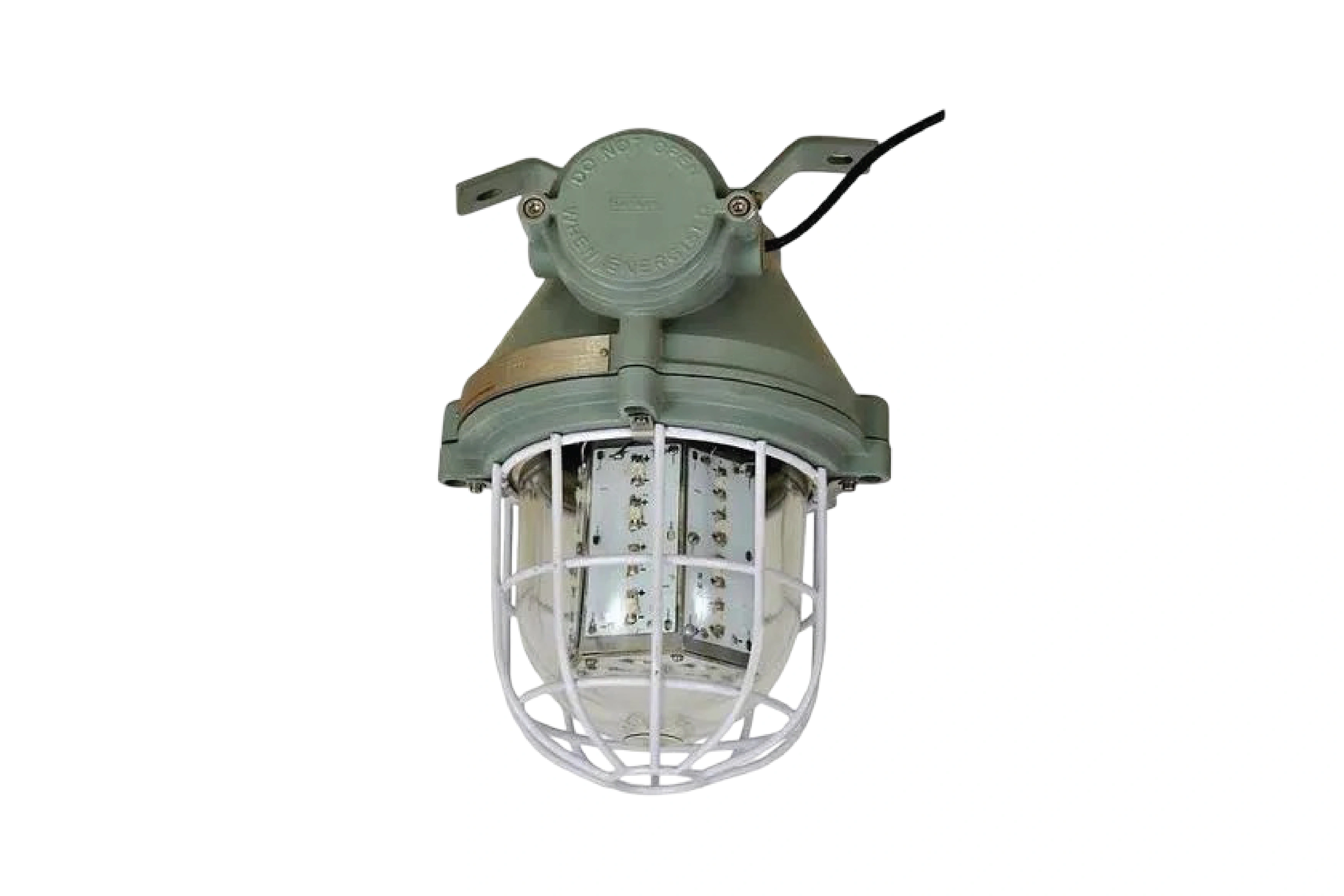

Well Glass (30W 40W 45W 60W 70W)

Prices As On Request

The LED Flameproof Well Glass Lens Model combines explosion-proof safety, energy efficiency, and durability in a rugged design, specifically engineered for hazardous environments where flammable gases, vapors, or dust are present. Ideal for industries such as oil & gas, chemicals, pharmaceuticals, and mining, this model offers superior protection with modern LED technology. Certified for use in hazardous areas Zone 2 for gas. Housing made from corrosion-resistant cast aluminum alloy with epoxy/polyester powder coating. Equipped with a toughened borosilicate glass lens, providing maximum impact resistance and thermal shock resistance.

Watt

Color

Get a quote

Specifications

Environmental
Working Temperature	-10 °C to + 45 °C
IP Rating	IP66
IK Rating	IK07
Standards Compliance
Standards	Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC:(EN 61547)
Physical Details
Material	High thermal conductivity Excellent heat transfer
Housing Color	Powder Coated –DA Grey Glossy (RAL-7021)
Applications	Indoor
Application Area	Chemical, paint, fertilizer industries, Oil & gas,refinery, petrochemicals LPG bottling, pharmaceutical , Steel, Cement industries,Mines Refineries & Petrochemicals.
Warranty	2 Years

Product Details
Model	Well Glass (30W 40W 45W 60W 70W)
Make	SHINE PLUS
Electrical Data
Power Consumption	20W / 30W / 45W / 60W
Operating Voltage Range	90-305V
Frequency	50 Hz
THD	<10%
Power Factor	> 0.95
Light Data
Light source (LED)	Ex d IIC T6
Colour temperature	6500K / 5000K / 3000K
CRI	>70
Average Life	L70 @50,000 Hours
Installation	Easy installation
