Top Opening Cleanroom Panel Light

3800.00

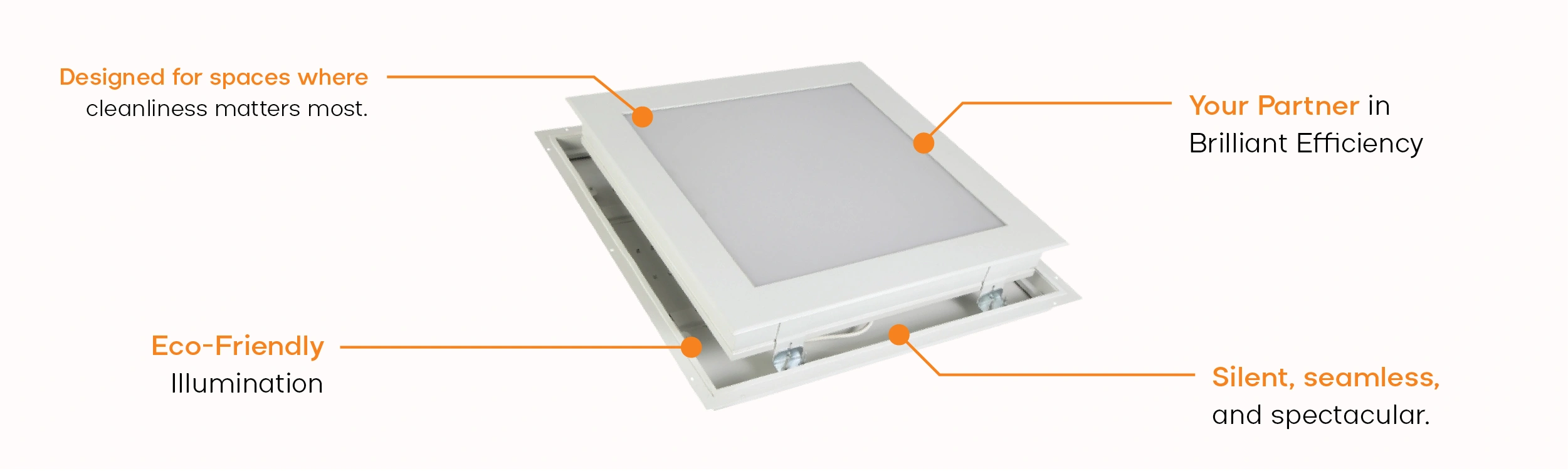

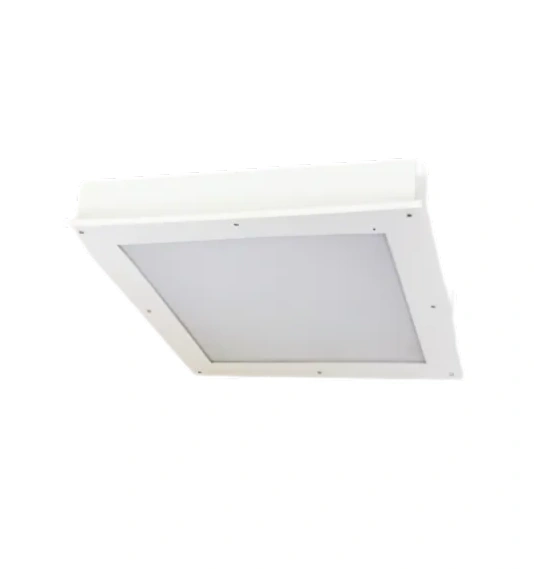

The LED Top Opening Clean Room Panel Light is purpose-built for controlled environments that demand high levels of cleanliness, efficient lighting, and easy serviceability. Designed for integration into modular cleanroom ceilings, this fixture ensures contamination-free performance while providing access for maintenance from above the ceiling. Allows maintenance access from the ceiling side, ideal for walkable ceilings or technical plenums. Ideal for pharmaceutical manufacturing, biotech labs, hospitals, food processing units, semiconductor cleanrooms, and more.

Watt

Color

Get a quote

Specifications

Environmental
Working Temperature	0 °C to + 55 °C
Working Humidity	10 to 90% RH
Storage Temperature	0°C TO + 85 °C
IP Rating	IP54
Standards Compliance
Standards	Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 4kV (EN 61547)
Physical Details
Material	CRCA sheet steel white powder-coated housing with SS Bottom Frame Opal acrylic cover is sealed with white powder coated or high strength corrosion resistant stainless steel frame with a double-sided gasket to foolproof dust. The bottom frame is gasketed from the sides for the ceiling cutout. Integrated designed top cover and loop in loop out cable termination provision (junction box) through pierce plug on the top cover.
Suitable Fixing	Modular, Exposed T or non-modular ceiling systems. Luminaire mounted to ceiling RCC slab by chain suspension
Housing Color	Powder Coated - WHITE Stainless-steel frame/ white powder coated frame
Applications	Indoor
Application Area	Pharmaceuticals, Electronic Component Manufacturer, Food & beverage Industry Laboratories, etc.
Warranty	2 Years

Product Details
Model	Top opening Cleanroom Panel Light
Make	SHINE PLUS
Electrical Data
Power Consumption	20W/ 24W/ 36W/40W/ 48W/ 60W
Operating Voltage Range	90VAC-265VAC
Frequency	50 Hz
THD	<15%
Power Factor	> 0.96
Driver	Fulham Constant Current (Internal)
Efficiency	> 85%
Light Data
Light source (LED)	Bridgelux – LM80-08
Efficacy	110 lm/Watt
Colour temperature	6000K
CRI	>80
Average Life	L70 @50,000 Hours
