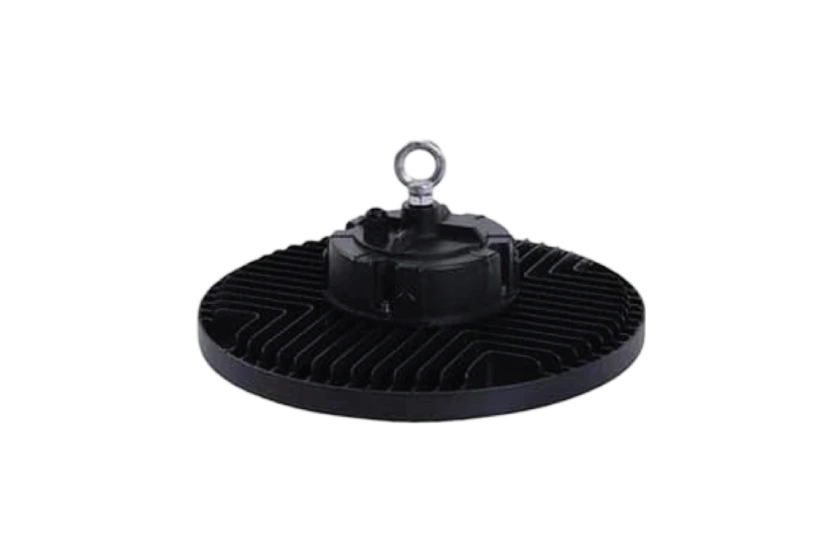

Driver-On-Board (DOB) LED High-Bay Lights combine performance, efficiency, and durability into a compact, easy-to-install solution for industrial, commercial, and warehouse lighting needs. Their energy-efficient design, improved heat dissipation, and simplified construction make them a powerful and cost-effective lighting option for mid-ceiling spaces. This innovative approach to LED lighting eliminates the need for an external driver, reducing the overall size and complexity of the lighting fixture
Watt
Color
Get a quoteEnvironmental | |
---|---|
Working Temperature | 0 °C to + 55 °C |
Working Humidity | 10 to 90% RH |
Storage Temperature | 0°C TO + 85 °C |
IP Rating | IP65 |
Standards Compliance | |
Standards |
Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 6kV (EN 61547) |
Physical Details | |
Material | Aluminium + polycarbonate lens cover |
Suitable Fixing | Ceiling/Surface Mount,Suspended by chain kit |
Housing Color | Powder Coated - Black |
Applications | Indoor Industrial environment |
Application Area |
Factories & Assembly Line, Industrial Plants & Units Toll Plaza, Warehouse, Cool storage area |
Warranty | 2 Years |
Product Details | |
---|---|
Model | Highbay Light |
Make | SHINE PLUS |
Electrical Data | |
Power Consumption | 50W/60W/80W |
Operating Voltage Range | 90VAC-265VAC |
Frequency | 50 Hz |
THD | <10% |
Power Factor | > 0.96 |
Driver | Constant Current |
Efficiency | > 86% |
Light Data | |
Light source (LED) | LED OSRAM 3030 1W |
Beam Angle | 90 degree |
Efficacy | 135 lm/Watt |
Colour temperature | 6500K |
CRI | >80 |
Average Life | L70 B50 @50,000 Hours |
