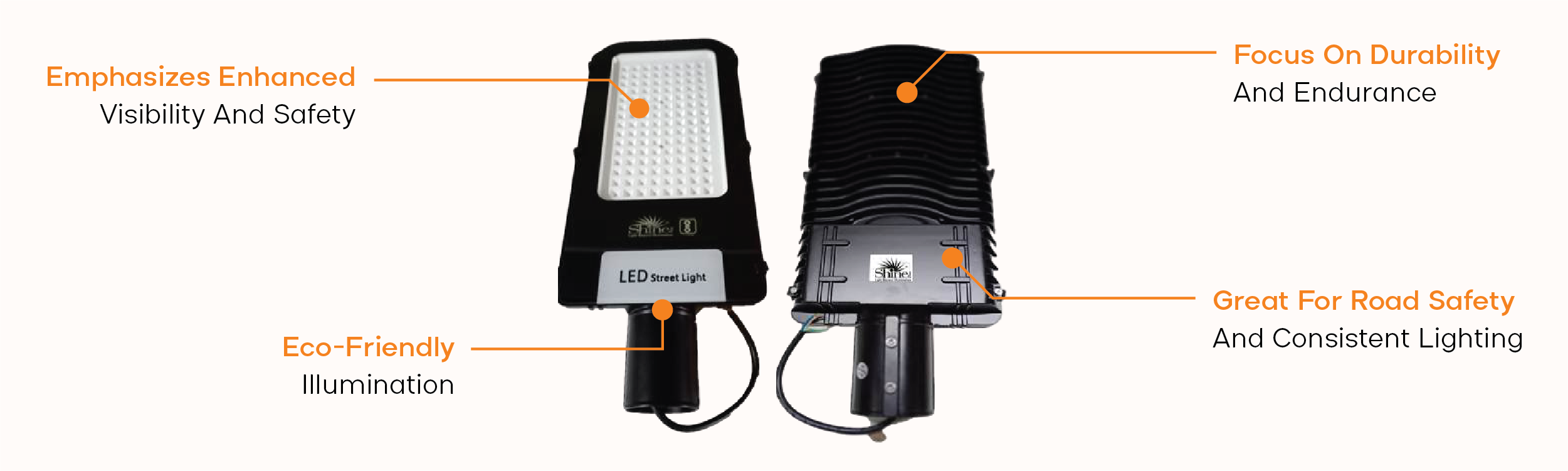

Our LED Street Light – Lens Model is meticulously designed to deliver superior light control, energy efficiency, and long-term durability. Utilizing high-performance LED chips in combination with engineered optical lenses, this model offers precise light distribution tailored to the specific requirements of roadway and area lighting applications. The lens model is ideal for projects requiring uniformity, low glare, and compliance with photometric standards. Built with corrosion-resistant die-cast aluminum housing and toughened glass lens for extreme durability.
Watt
Color
Get a quoteEnvironmental | |
---|---|
Working Temperature | 0 °C to + 55 °C |
Working Humidity | 10 to 90% RH |
Storage Temperature | 0°C TO + 85 °C |
IP Rating | IP66 |
Standards Compliance | |
Standards |
Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 6kV (EN 61547) |
Physical Details | |
Material | Aluminium + PC Lens + Toughned Glass |
Suitable Fixing | Pole mounting |
Housing Color | Powder Coated - Black |
Applications | Outdoor |
Application Area |

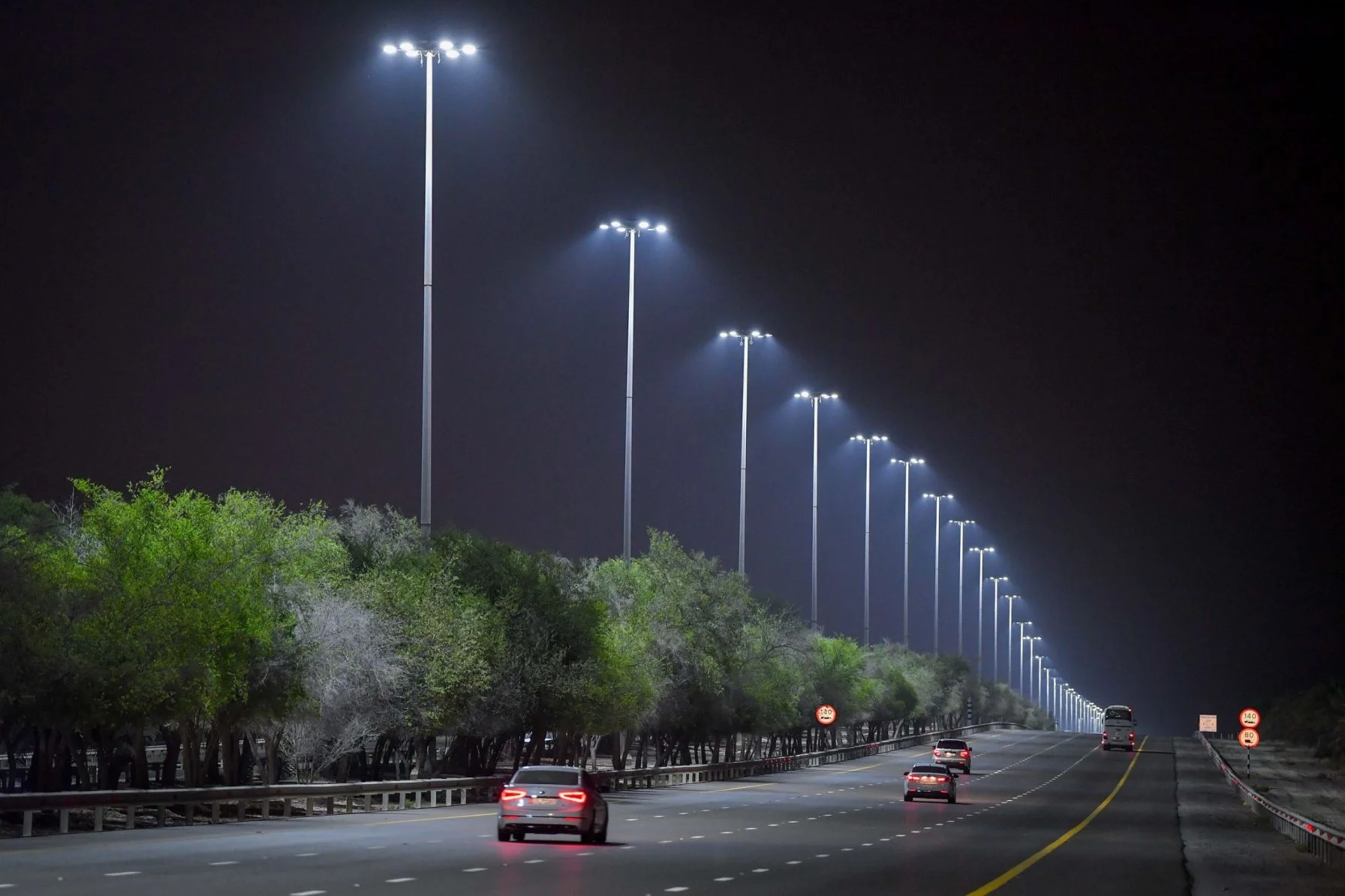

Highway and roadway lighting, Park and Playground lighting, Industrial lighting and < br>Outdoor security lighting. |
Warranty | 2 Years |
Product Details | |
---|---|
Model | LED Street light Manufacturer |
Make | SHINE PLUS |
Electrical Data | |
Power Consumption | 45W/50W/60W/70W/80W/100W/120W |
Operating Voltage Range | 90VAC-265VAC |
Frequency | 50 Hz |
THD | <10% |
Power Factor | > 0.96 |
Driver | Constant Current (External) |
Efficiency | > 86% |
Light Data | |
Light source (LED) | LED OSRAM 3030 1W |
Beam Angle | 70X140 degree (s) |
Efficacy | 135 lm/Watt |
Colour temperature | 6500K |
CRI | >80 |
Average Life | L70 B50 @50,000 Hours |
