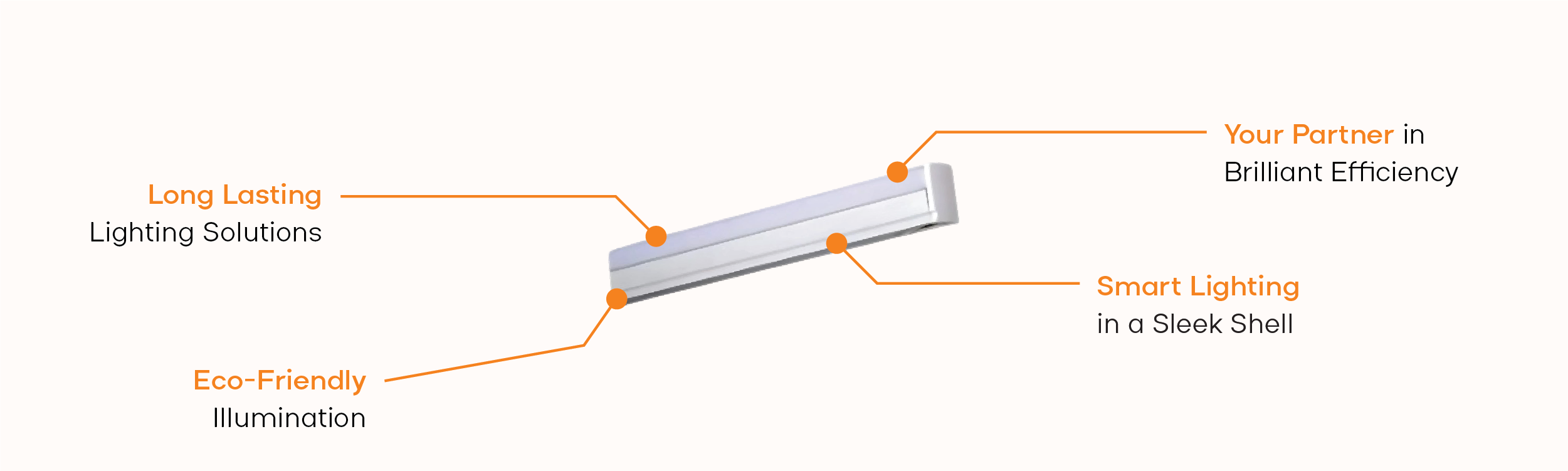

LED aluminium battens are high-performance lighting fixtures designed for robust use in commercial, industrial, and residential environments. With a sleek finish and excellent heat dissipation, these battens offer a stylish and efficient alternative to traditional fluorescent lighting
Watt
Color
Get a quote| Environmental | |
|---|---|
| Working Temperature | 0 °C to + 55 °C |
| Working Humidity | 10 to 90% RH |
| Storage Temperature | 0°C TO + 85 °C |
| IP Rating | IP20 |
| Standards Compliance | |
| Standards |
Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 2.5kV (EN 61547) |
| Physical Details | |
| Material | Aluminium + Polycarbonate |
| Suitable Fixing | Surface |
| Applications | Indoor |
| Application Area |
Commercial and residential Factory,Warehouse Hotels and restaurants Cold storage,Supermarket |
| Warranty | 2 Years |
| Product Details | |
|---|---|
| Model | LED Aluminium Battens |
| Make | SHINE PLUS |
| Electrical Data | |
| Power Consumption | 20W/22W |
| Operating Voltage Range | 90VAC-265VAC |
| Frequency | 50 Hz |
| THD | <15% |
| Power Factor | > 0.96 |
| Driver | Constant Current (External) |
| Efficiency | > 85% |
| Light Data | |
| Light source (LED) | Edison |
| Efficacy | 110 lm/Watt |
| Colour temperature | 3000K/4000K/6000K |
| CRI | >80 |
| Average Life | L70 B50 @50,000 Hours |
