Monochromatic- Dual Tone LED Lights Bottom opening Cleanroom Panel Light

4000.00

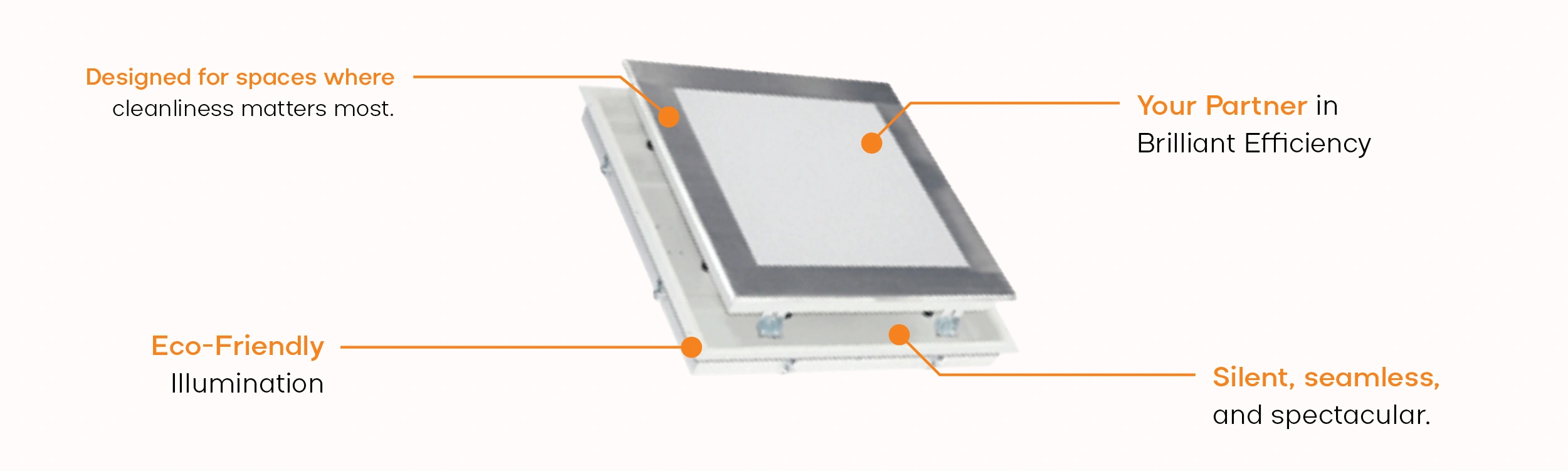

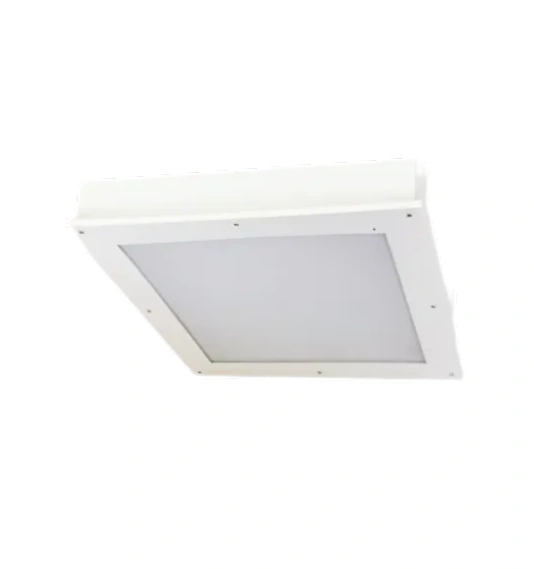

The LED Monochromatic Bottom Opening Clean Room Panel Light is a specialized lighting fixture designed to meet both cleanroom hygiene standards and process-specific illumination requirements. With a bottom-opening design for easy in-room maintenance and a single-wavelength LED output, it’s ideal for controlled environments in industries such as pharmaceuticals, electronics, laboratories, and food processing.

Watt

Color

Get a quote

Specifications

Environmental
Working Temperature	-10 °C to + 55 °C
Working Humidity	10 to 90% RH
Storage Temperature	0°C TO + 85 °C
IP Rating	IP54
Standards Compliance
Standards	Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 4kV (EN 61547)
Physical Details
Material	CRCA sheet 1mm/20Guage, Epoxy powder-coated housing with SS Bottom Frame Opal PMMA Diffuser is sealed with white powder coated or high strength corrosion resistant stainless steel frame with a HYPLON XLPE gasket to foolproof dust. The bottom frame is gasketed from the sides for the ceiling cutout. Loss-proof SS screws used for fixing the bottom frame to the housing.
Suitable Fixing	Non-IC recessed ceiling mounting into grid and flange application types. Flange installation utilizes included adjustable swing-out mounting brackets. Grid installation suitable for 1" and 1.5" T-bar ceilings. Housing is field-convertible between grid and flange-style mounting types. See Options for continuous row mounting and install frames.
Housing Color	Powder Coated - WHITE Stainless-steel frame/ white powder coated frame
Applications	Indoor
Application Area	Pharmaceutical, Cleanrooms, Vivariums, Containment Areas, Laboratories, Research and Development, Industrial Food Processing Facilities, Industrial application
Warranty	2 Years

Product Details
Model	Monochromatic- Dual Tone LED Lights Bottom opening Cleanroom Panel Light
Make	SHINE PLUS
Electrical Data
Power Consumption	60W ±10% (White) 60W ±10% (Yellow)
Operating Voltage Range	90VAC-265VAC
Frequency	50 Hz
THD	<15%
Power Factor	> 0.96
Driver	Fulham Constant Current (Dual Internal)
Control Type	Manual
Efficiency	> 85%
Light Data
Light source (LED)	Bridgelux – LM80-08
Efficacy	120 lm/Watt
Wavelength	570nm (Yellow)
Colour temperature	White , Yellow
CRI	>80
Average Life	L70 @50,000 Hours
