Led Batten Needle

750.00

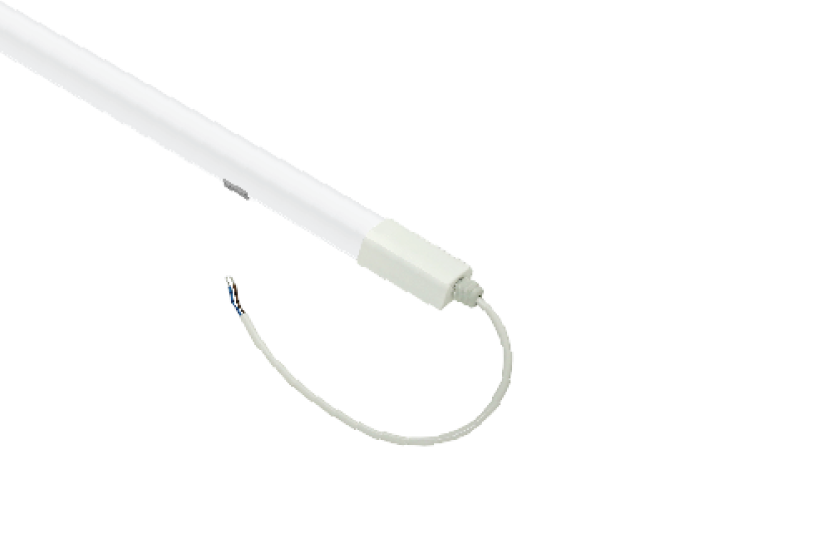

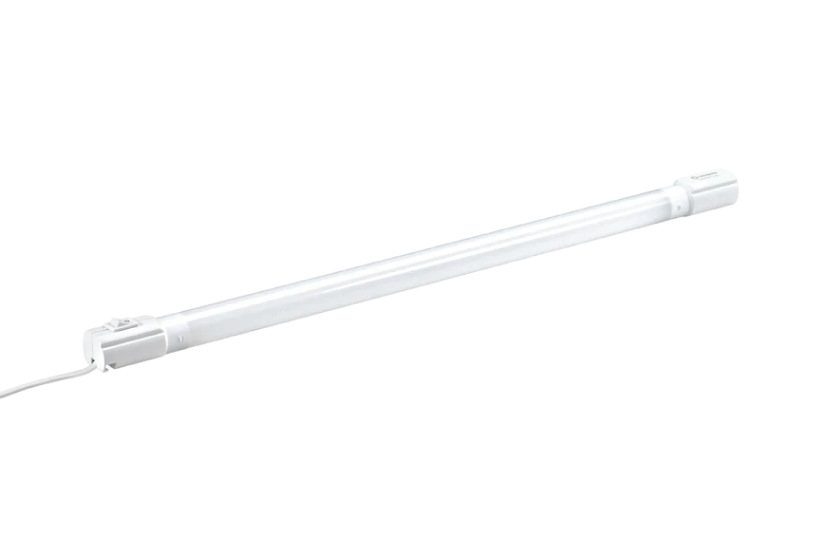

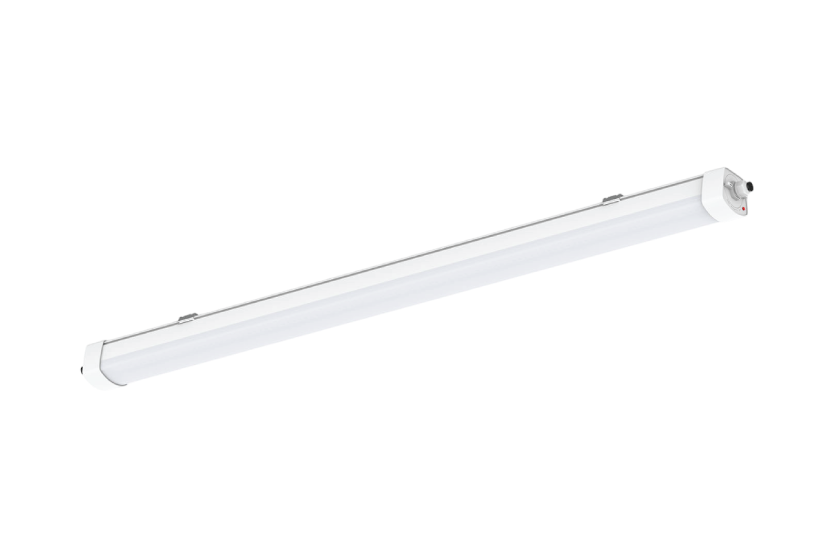

The Slim Needle Triproof Batten is a sleek, high-performance lighting solution engineered for industrial and commercial environments where durability, efficiency, and aesthetics matter. Its ultra-slim design, combined with tri-proof protection, makes it ideal for confined spaces and demanding applications. Delivers high lumen output with low power consumption, ensuring excellent brightness and energy savings. Ideal for warehouses, production areas, cold storage, underground car parks and corridors.

Watt

Color

Get a quote

Specifications

Environmental
Working Temperature	0 °C to + 55 °C
Working Humidity	10 to 90% RH
Storage Temperature	0°C TO + 85 °C
IP Rating	IP65
Suitable Fixing	Surface
Standards Compliance
Standards	Voltage Fluctuations, Flicker (EN 61000-3-3) Harmonics Current (EN 61000-3-2) Surge Immunity (EN 61000-4-5) EMC: 4kV (EN 61547)
Physical Details
Material	Polycarbonate + Aluminium
Suitable Fixing	Surface
Housing Color	White
Applications	Indoor/Outdoo
Warranty	2 Years

Product Details
Model	SHUF INDUSTRIAL LED BATTEN NEEDLE
Make	SHINE PLUS
Electrical Data
Power Consumption	24W/ 28W/ 36W
Operating Voltage Range	90VAC-265VAC
Frequency	50 Hz
THD	<15%
Power Factor	> 0.96
Driver	Constant Current
Efficiency	> 85%
Light Data
Light source (LED)	Edison
Efficacy	150±10% lm/Watt
Colour temperature	6000K
CRI	>80
Average Life	L70 B50 @50,000 Hours
